The Virginia Muscle Car

George's Daytona of Today

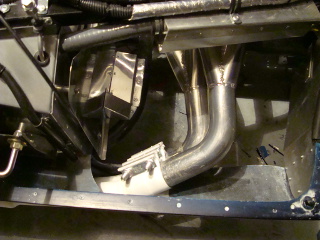

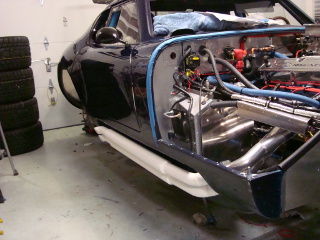

Side pipes in place. Was a cut and trial fit process; both header pipe and side pipe. Final fit was good; a result of good FFR kit design. Tires in background. Nitto 555 Extreme Performance Z Street Tires, on rims using Hunter Road Force mount and balance eqpt.

Pipe clamps - should be leak-free; spec is 40 ft-lb on bolts.

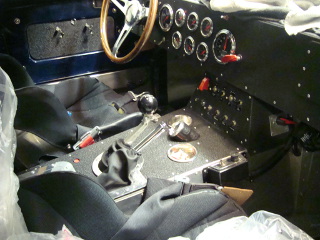

Console with Steeda shifter (on TKO 600 trans) and Lokar e-brake. Trans has drive-shaft installed.

Engine all complete. AC hoses in place. Heat shield above headers. Red tubes at at back of carb are for methanol injector nozzles. Methanol tank at right (white). GM style alternator has GM type upper bracket and Spectre alternator mount kit. Radiator cap on custom (Cobra Earl's - a very high quality product) thermostat housing. Air cleaner was modified from center to rear mount to clear hood.~G
